Pedestrian pushing machine model APS-1014 Increase pedestrian safety
Pedestrian pushing machine model APS-1014 is one of the products of Behineh Sanj Company, whose most important application is to increase the safety of pedestrians at intersections and crossings.

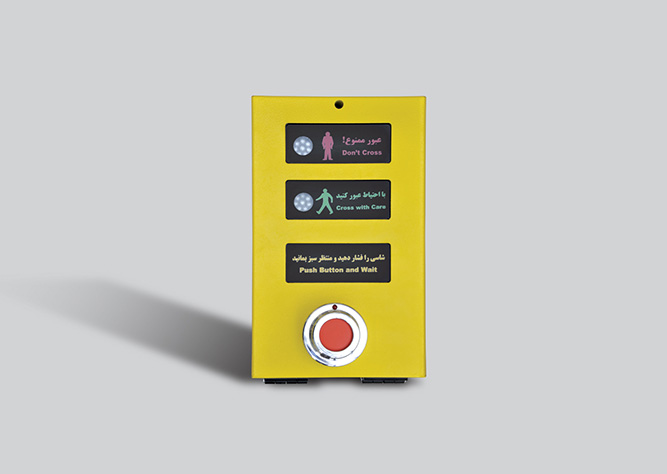

Introducing the APS-1014 pedestrian pushing machine

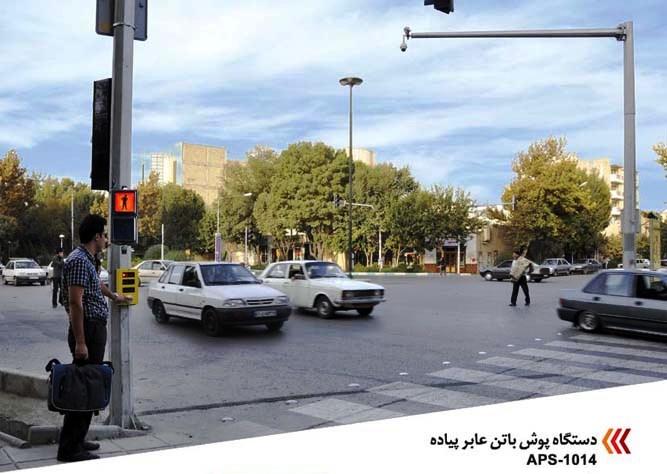

Pedestrian pushing machine model APS-1014 is one of the products of Behineh Sanj Company, whose most important application is to increase the safety of pedestrians at intersections and crossings. The APS-1014 pedestrian push-button device provides visual and audible signals to help pedestrians with special conditions, or the elderly and children, to be informed of the traffic situation on the street and to cross at the right time.
The alarms generated by this device only cover the passage of pedestrians and prevent noise disturbance for the residents of that area. Passers-by can also turn the traffic light green and red for other cars by pressing the stop chassis. This device provides high security and completely safe traffic for those who have mobility problems for the width of the street or need more time for it.
Applications of APS-1014 pedestrian padding machine
- Can be used at busy intersections and intersections
- Ability to create more security for people crossing the street
- Inform pedestrians of the right time to cross the street
Features of APS-1014 pedestrian pushing machine
- Ability to work with different types of intersection controllers (no dependence on the type of controller)
- Provide both visual and audible signals to inform pedestrians to cross the intersection
- Automatic adjustment of the amplitude of audio signals to the ambient sound level at any time CPU
- Modular design
- Quick and easy installation on the lighthouse mast
Technical specifications of PSC-1015 pedestrian crossing controller
| Technical Specifications |
|---|
| Microprocessor-based CPU board from the AVR family |
| AGC unit for automatic adjustment of the speaker signal level based on the ambient sound level |
| Ability to adjust the amplitude of the audio signal automatically or manually |
| Ability to select the flashing signal of the passerby in FDW interval in red and green |
| Compatible with a variety of intersection and bus controllers |
| Weak horn to inform blind passers-by about the installation location of the device (Locator Beep) |
| Industrial type chassis with aluminum protective cover |
| Quick and easy installation on the lighthouse mast |
| Proper termination inside the box for easy electrical connections |
| Create an electrical contact to apply to the input of the controller push button |
| Input power supply 10-12 VAC |
| Input voltage of green and red signal transmitters: 120-240 VAC |
| Humidity: 95% ~ 10% (unsaturated) |
| Humidity: 95% ~ 10% (unsaturated) |
| Dimensions: HxWxD = 19x9x32 Cm |
| Panel color: Traffic yellow / Body color: High quality electrostatic blue |
| Weight: Kg4.25 |
Sample customers
Tehran Municipality
Isfahan Municipality
Tabriz Municipality
Tehran Road Police
Mashhad municipality
